Pump Modem (Max)

A simple 4g Text-Based modem designed for the remote management of pumping applications, typically but not limited to irrigation and water transfer.

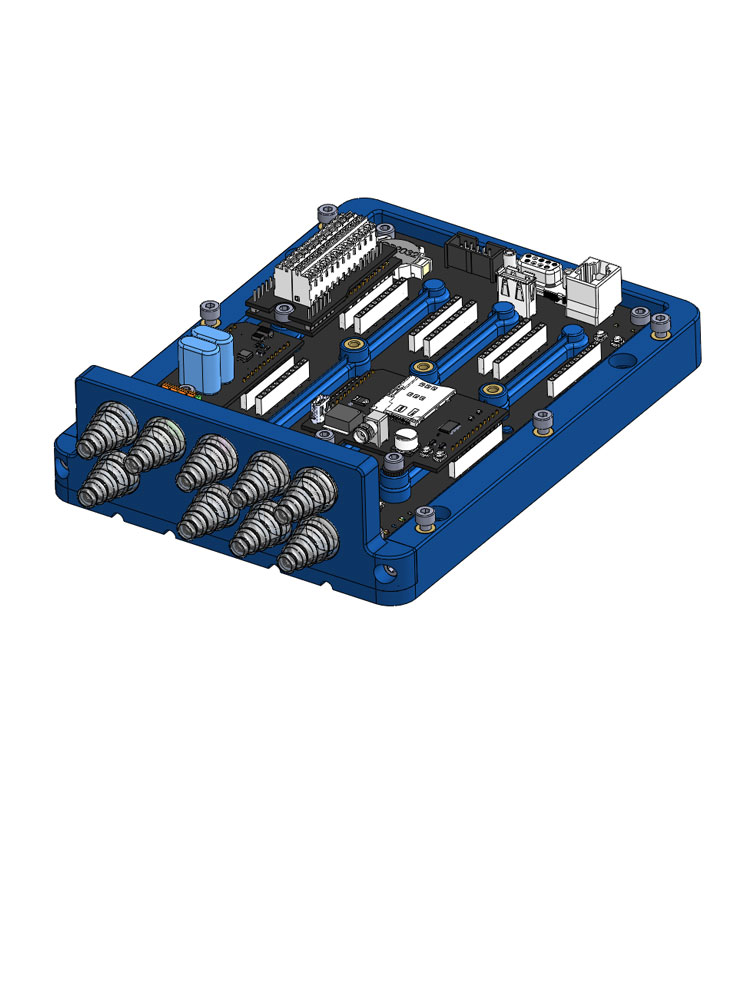

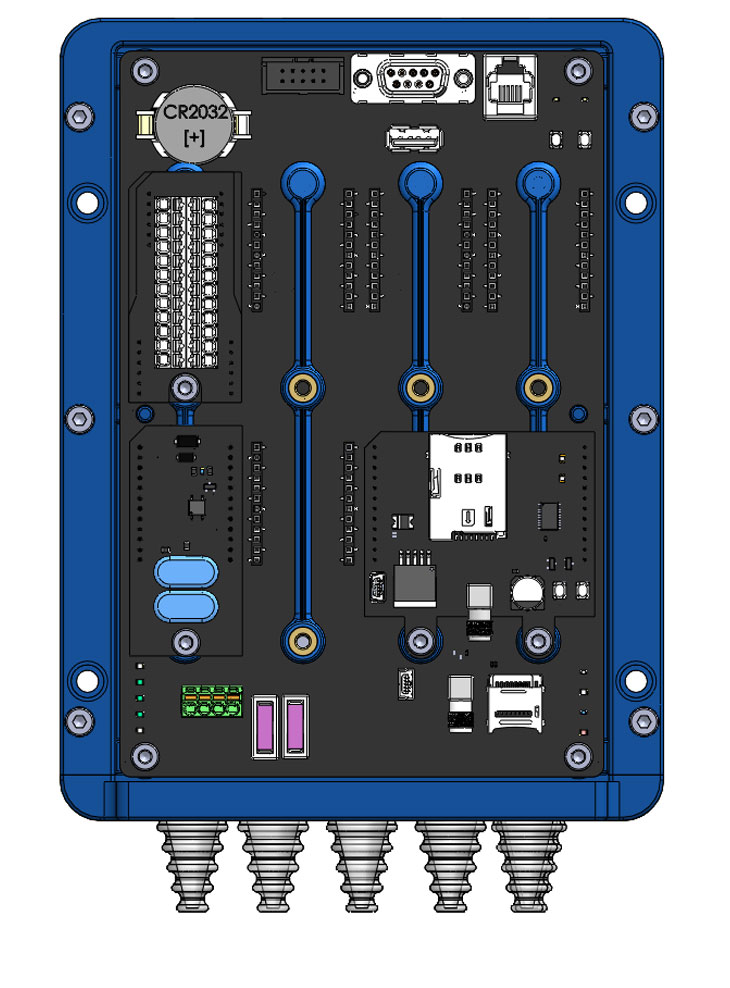

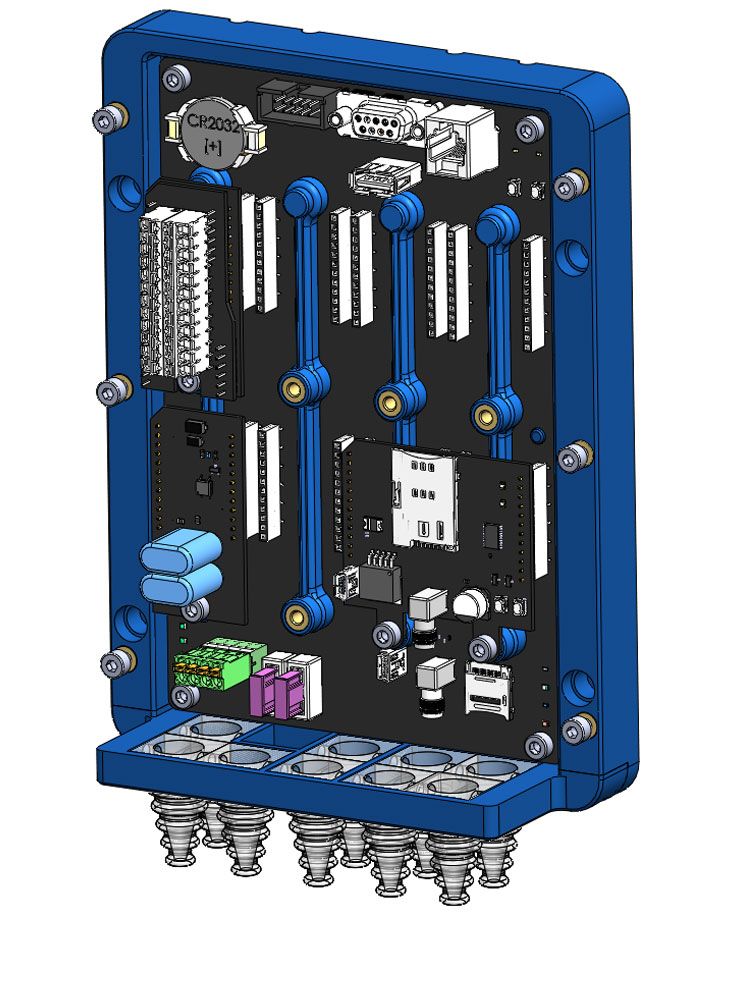

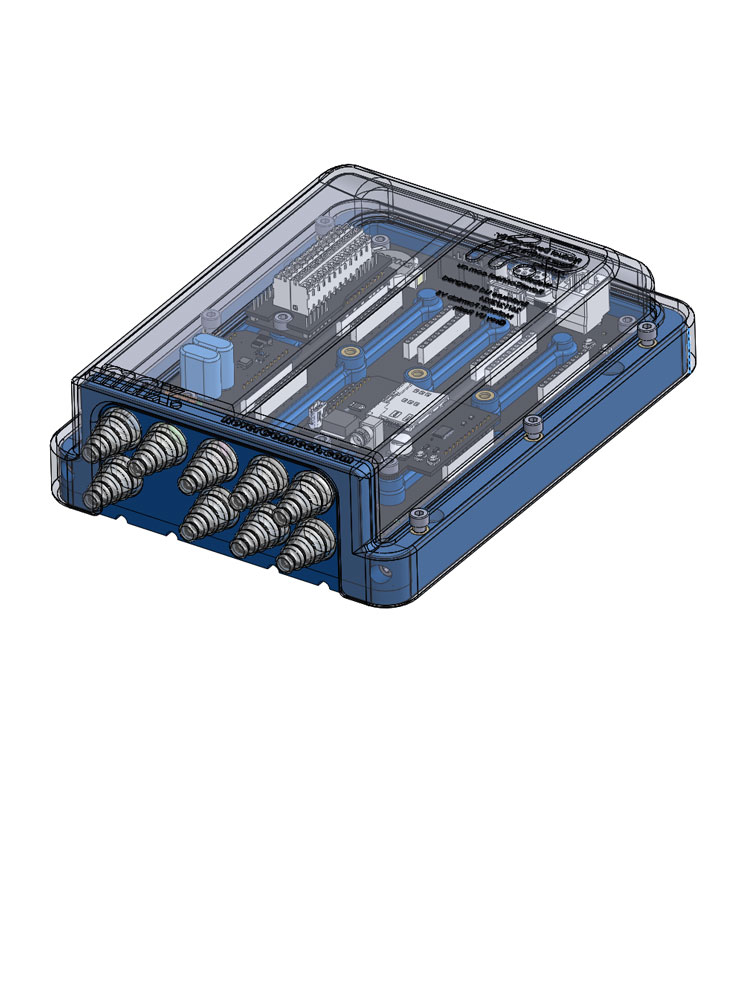

The [Max] version comes with four dedicated pump control slots located on the top row of the controller. The bottom four slots are used for the modem module, UPS module, and a spare slot, which is not typically used for this system configuration.

Specifications

System Features

  • Text Message – [Start] and [Stop] commands
  • Single Latched Relay and Dual Pulsed Start and Stop Relay Control
  • Set Runtimer
  • Set Analogue 0-10v
  • Acknowledgement Messages
  • Running and Stopped Message Request Status Message
  • Din 1 Safety Input (External Shutdown or System Healthy Control)
  • Din 2 Running Message

Mechanical Properties

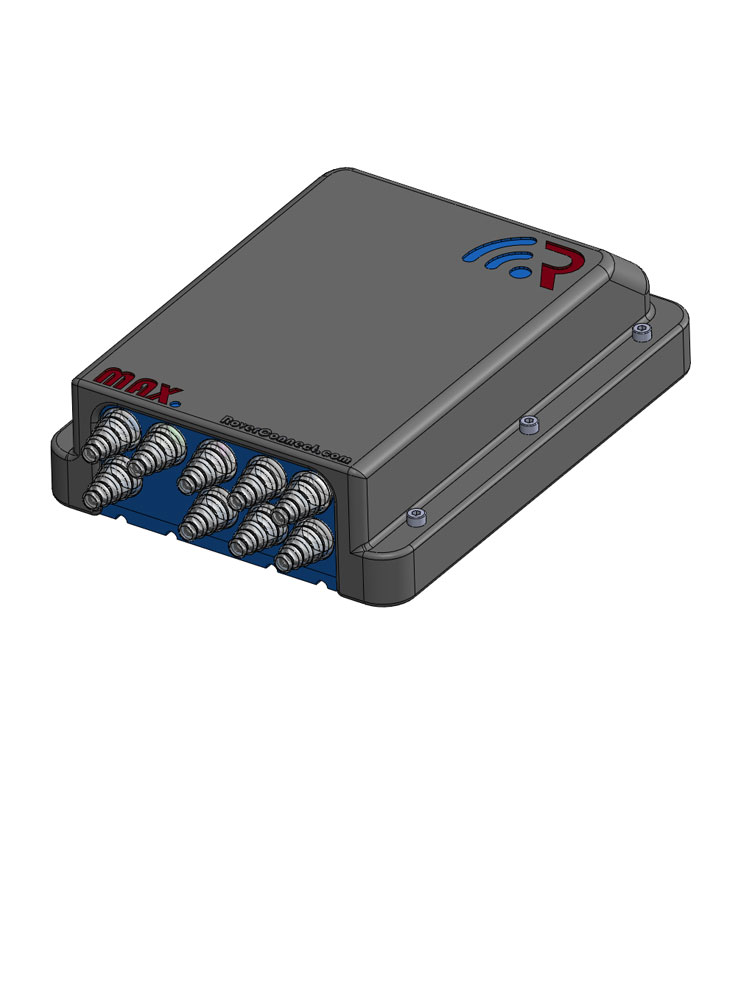

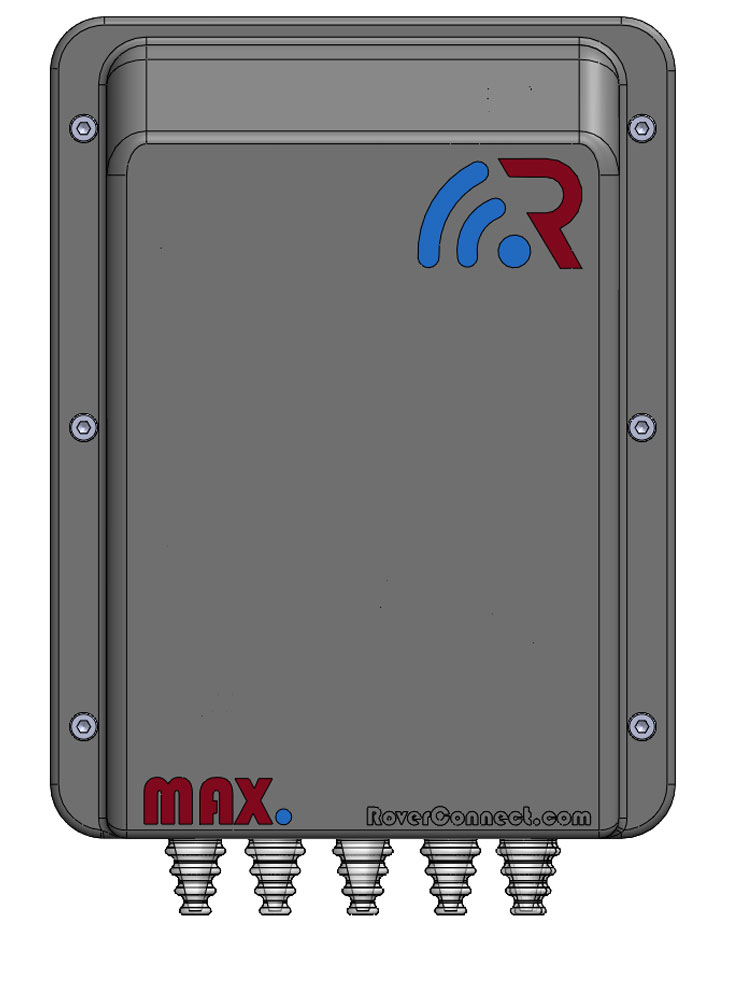

The Max controller is built for versatile use in tough environments; however, it should avoid direct sunlight and extended moisture exposure. For installations requiring direct outdoor exposure, Rover Systems provides the Rover Max Shield, designed to protect the product from the elements.

Application
Pump Modem Application
This example shows a single Variable Speed Drive installation, however up to four motor control starters of various types can be connected to one Rover Pump Modem. These motor types can include Variable Speed Drive, Star Delta, Soft Starter and DOL.
